WA Abrasive grain for resin bonded disc
WA Abrasive grain for resin bonded disc is made from fully fused Aluminum oxide material. As one of the mostly used abrasive grain, WFA obtain excellent self-sharpening capability, good grinding performance. Especially for Stainless stell, metal alloy, resin bonded disc made from WFA grain acheive superior performance. In the meantime, the cost of white fused alumina WA material is much lower than Zirconium Alumina and SG abrasives.
Product Name: WA, White Alumina, White aluminum oxide, WFA, White fused alumina, White Alox, White corundum, Eletctrofused Alumina, etc. Alúmina blanca, óxido de aluminio blanco, alúmina fundida blanca, Alox blanco, corindón blanco, alúmina electrofundida,Alumina branca, óxido de alumínio branco, alumina fundida branca, Alox branco, coríndon branco, alumina electrofundida
Product Feature of WA Abrasive grain for resin bonded disc
- Excellent self-sharpening ability.
- High hardness.
- Easy to mix with colorant to get color wheels.
- Good grinding ability. It will get sharp grinding of abrasive wheels.
- High Al2O3 purity with low Na2O and low SiO2
- Suitable for a large range of substrate including stainless steel, iron, metal, steel, etc.
Typical chemical analysis of WA Abrasive grain for resin bonded disc
| AL2O3 | 99.62% |
| Fe2O3 | 0.02% |
| Na2O | 0.18% |
| K2O | 0.01% |
| SiO2 | 0.07% |
| CaO | 0.02% |
| MgO | 0.01% |
| L.I.O. | 0.05% |
Typical physical properties of WA Abrasive grain for resin bonded disc
| Hardness: | Mohs:9.0 |
| Maximum service temperature: | 1900 centigrade |
| Melting Point: | 2250 centigrade |
| Specific Gravity: | 3.95g/cm3 |
| Volume density | 3.6g/cm3 |
| Bulk density(LPD): | 1.70g/cm3 |
| Whiteness: | 85% |
| Milling Roughness: | 33.6% |
| Particle shape: | Angular |
Bulk density of WA Abrasive grain for resin bonded disc:
| F Grit Size | Mean diameter in um | Bulk Density(LPD) in g/cm3 |
| F8 | 2460 | 1.79-1.88 |
| F10 | 2085 | 1.78-1.88 |
| F12 | 1765 | 1.78-1.87 |
| F14 | 1470 | 1.77-1.86 |
| F16 | 1230 | 1.75-1.85 |
| F20 | 1040 | 1.74-1.85 |
| F22 | 885 | 1.73-1.84 |
| F24 | 745 | 1.73-1.83 |
| F30 | 625 | 1.73-1.82 |
| F36 | 525 | 1.72-1.82 |
| F40 | 438 | 1.71-1.81 |
| F46 | 370 | 1.70-1.80 |
| F54 | 310 | 1.68-1.79 |
| F60 | 260 | 1.68-1.78 |
| F70 | 218 | 1.63-1.73 |
| F80 | 185 | 1.61-1.71 |
| F90 | 154 | 1.59-1.69 |
| F100 | 129 | 1.58-1.68 |
| F120 | 109 | 1.55-1.62 |
| F150 | 82 | 15.2-1.61 |
| F180 | 69 | 1.50-1.60 |
| F220 | 58 | 1.48-1.58 |
Applications of WA Abrasive grain for resin bonded disc
- Resin bonded cutting and grinding discs.
- Depressed center grinding wheels.
- Fiber discs.
- Sanding blocks.
- Vitrified grinding wheels.
- Net grinding wheel
- Polishing wheels.
- Whetstone and lapping stone.
- Polishing wax.
- Mounted point.
Product Specification of WA Abrasive grain for resin bonded disc
| Grit size | Sieve 1 | % | Sieve 2 | % | Sieve 3 | % | Sieve 4 | % | Sieve 5 | % |
| F8 | +4000um | 0 | +2800um | ≤20% | +2360um | ≥45% | +2360+2000um | ≥70% | -1700um | ≤3% |
| F10 | +3350um | 0 | +2360um | ≤20% | +2000um | ≥45% | +2000+1700um | ≥70% | -1400um | ≤3% |
| F12 | +2800um | 0 | +2000um | ≤20% | +1700um | ≥45% | +1700+1400um | ≥70% | -1180um | ≤3% |
| F14 | +2360um | 0 | +1700um | ≤20% | +1400um | ≥45% | +1400+1180um | ≥70% | -1000um | ≤3% |
| F16 | +2000um | 0 | +1400um | ≤20% | +1180um | ≥45% | +1180+1000um | ≥70% | -850um | ≤3% |
| F20 | +1700um | 0 | +1180um | ≤20% | +1000um | ≥45% | +1000+850um | ≥70% | -710um | ≤3% |
| F22 | +1400um | 0 | +1000um | ≤20% | +850um | ≥45% | +850+710um | ≥70% | -600um | ≤3% |
| F24 | +1180um | 0 | +850um | ≤25% | +710um | ≥45% | +710+600um | ≥65% | -500um | ≤3% |
| F30 | +1000um | 0 | +710um | ≤25% | +600um | ≥45% | +600+500um | ≥65% | -425um | ≤3% |
| F36 | +850um | 0 | +600um | ≤25% | +500um | ≥45% | +500+425um | ≥65% | -355um | ≤3% |
| F46 | +600um | 0 | +425um | ≤30% | +355um | ≥40% | 355+300um | ≥65% | -250um | ≤3% |
| F54 | +500um | 0 | +355um | ≤30% | +300um | ≥40% | +300+250um | ≥65% | -212um | ≤3% |
| F60 | +425um | 0 | +300um | ≤30% | +250um | ≥40% | 250+212um | ≥65% | -180um | ≤3% |
| F70 | +355um | 0 | +250um | ≤25% | +212um | ≥40% | +212+180um | ≥65% | -150um | ≤3% |
| F80 | +300um | 0 | +212um | ≤25% | +180um | ≥40% | +180+150um | ≥65% | -125um | ≤3% |
| F90 | +250um | 0 | +180um | ≤20% | +150um | ≥40% | +150+125um | ≥65% | -106um | ≤3% |
| F100 | +212um | 0 | +150um | ≤20% | +125um | ≥40% | +125+106um | ≥65% | -75um | ≤3% |
| F120 | +180um | 0 | +125um | ≤20% | ≥40% | ≥40% | +106+90um | ≥65% | -63um | ≤3% |
| F150 | +150um | 0 | +106um | ≤15% | +75um | ≥40% | +75+63um | ≥65% | -45um | ≤3% |
| F180 | +125um | 0 | +90um | ≤15% | +75um | * | +75+63um | ≥40% | -53um | * |
| F220 | +106um | 0 | +75um | ≤15% | +63um | * | +63+53um | ≥40% | -45um | * |

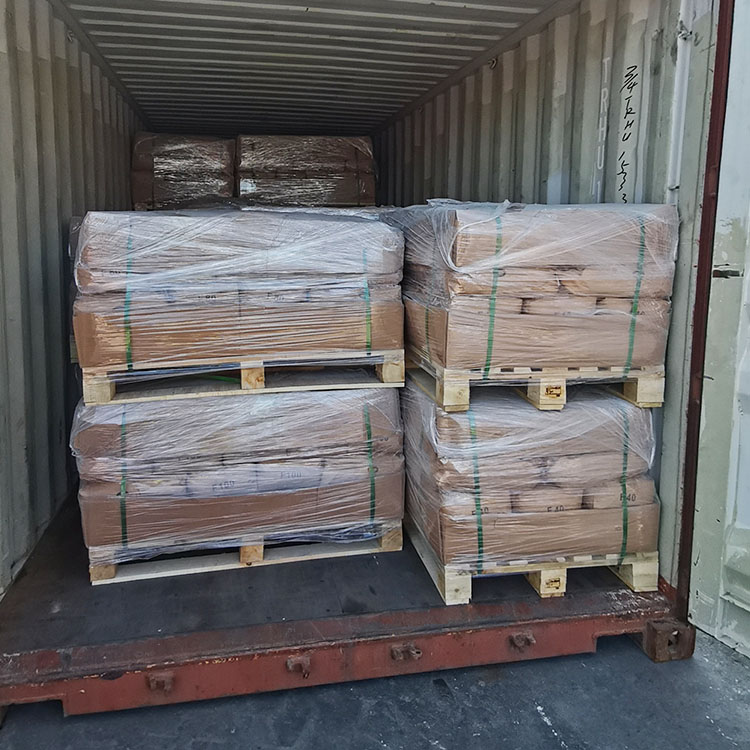

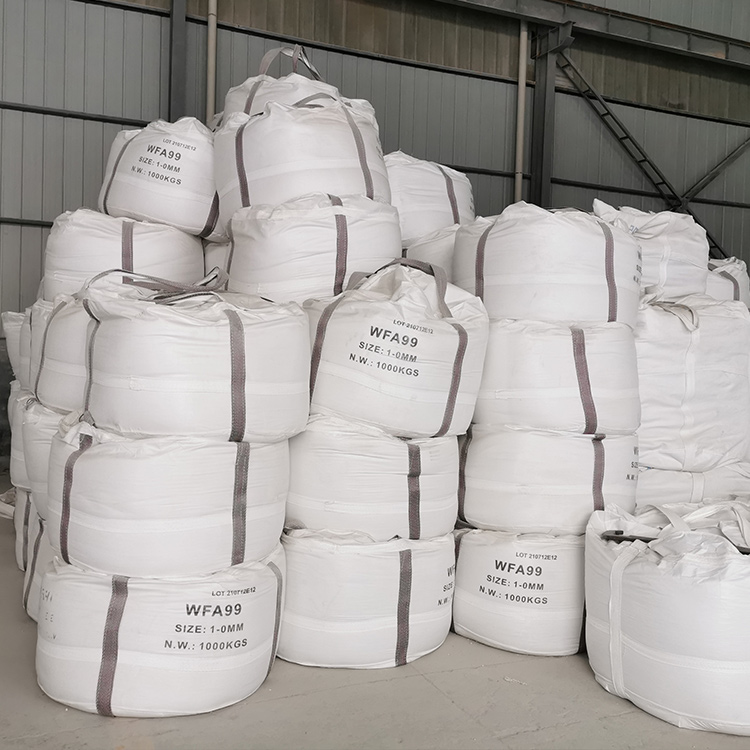

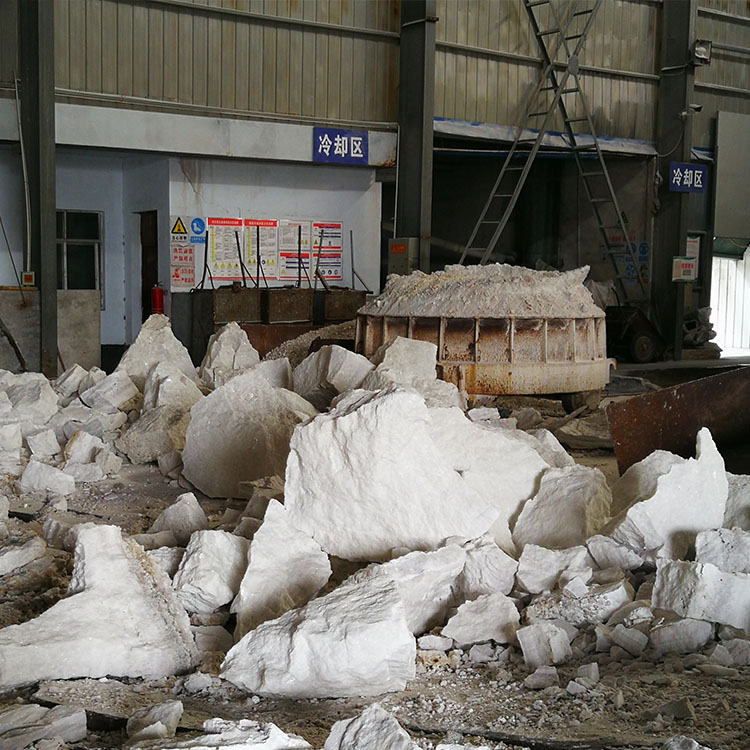

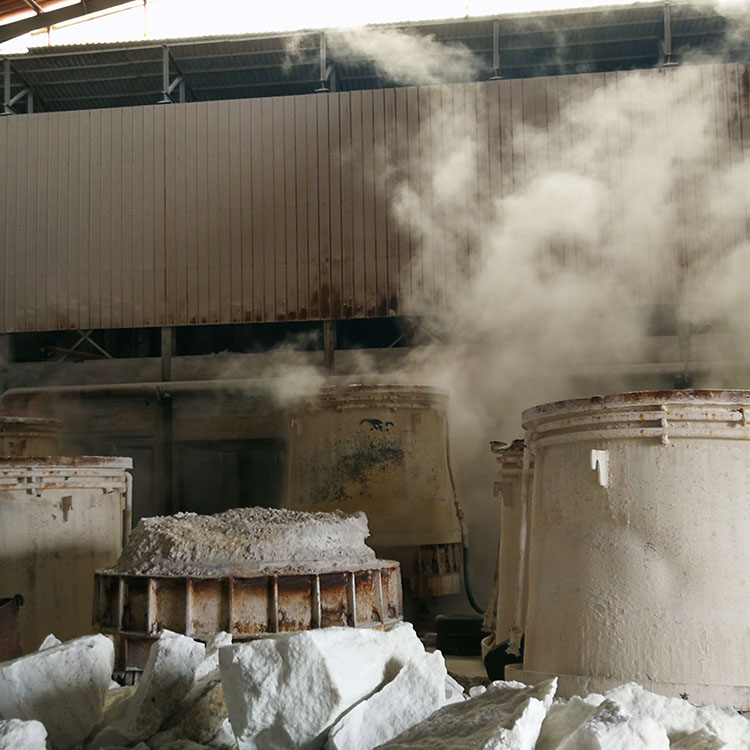

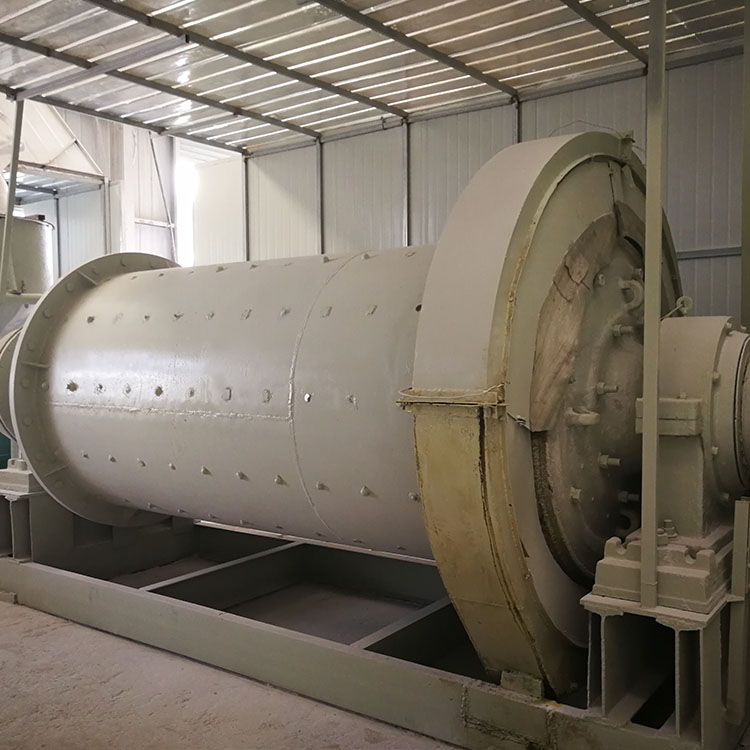

Productions and package:
